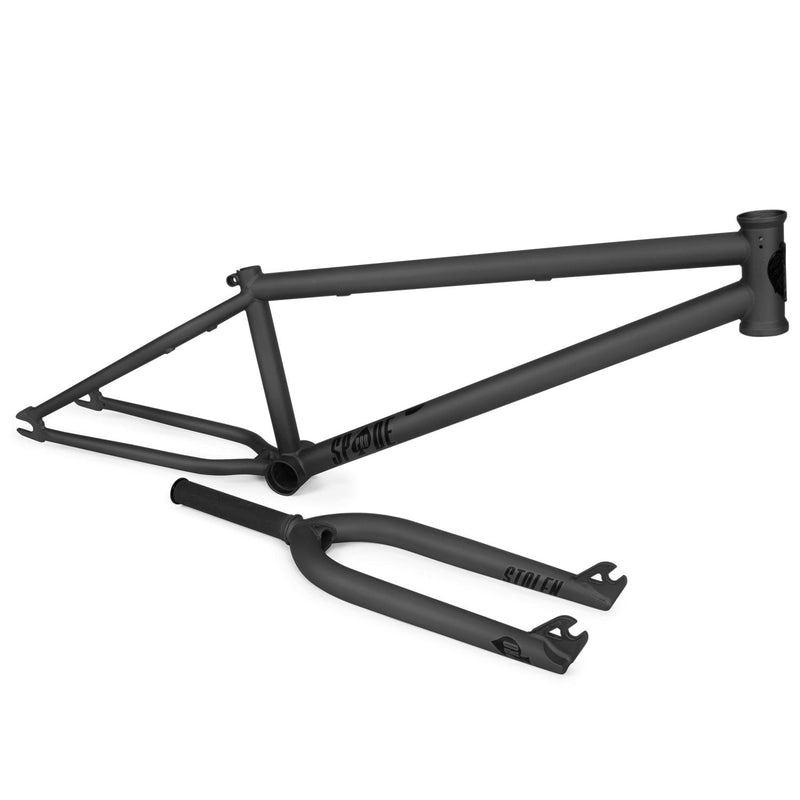

22" SPADE PRO FRAME FRAME & FORK KIT, BLACK

$299.99

– Sold Out

| /

Notify me when this product is available:


FRAME:

FEATURES:The 100% Chromoly frame is designed for 22" trail, street and park with our unique 22” geometry. This frame rides and feels like a 20 inch Pro level frame with a little more cockpit room.

HEADSET TYPE:Integrated (Campy)
GYRO TABS:No
BRAKE MOUNTS: Removable (Included)
BB TYPE: Mid
BB HEIGHT: 12.25"
CHAINSTAY LENGTH: 14.1" CtoC
HEADTUBE ANGLE:74.25°
SEATTUBE ANGLE: 71°
SEAT POST SIZE: 25.4mm
SEAT CLAMP:Integrated
DROPOUT SIZE: 14mm

WEIGHT: 5.35 lbs

GEOMETRY: TT: 22.25″ CS: 14.10″ HT: 74.25° ST: 71° SO: 9.10″ BB: 12.25" (+25mm offset)

FORK:

FEATURES: Heat-treated 31.8mm tapered Chromoly legs, one-piece Chromoly steerer tube w/ integrated crown race, 5mm dropouts for 3/8” axles
Alloy Vortex top cap included.

STEERER TUBE LENGTH:165mm
OFFSET: 28.0mm
COMPRESSION BOLT: Alloy M24x1.5mm
COMRESSION BOLT TOOL:6mm Allen Key
WEIGHT: 34.0 oz
